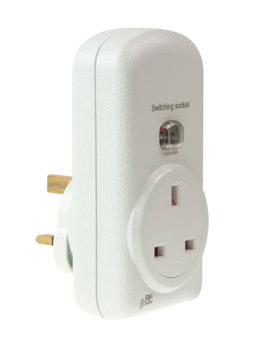

RFSC-61 - 13A

Switching Socket Outlet

tp83



• Quick solution for wireless control of appliances into a socket.

• Multifunction design - button switch on/off, impulse relays, delayed off,
  delayed on, programming and manual control on/off is performed by
  pressing the front panel button.

• Switching output up to 4000VA.

• Controlled by up to 32 Channels.

• Option of setting function delayed return, delayed start with time
  interval from 2 seconds to 30 minutes.

• CS2 receiver offers memory function which enables device to remember the   status in the event of power failure (single flash - disabled or double flash -   enabled when exiting programming)

Technical Details
Supply voltage: 230V AC / 50-60Hz
Apparent power: 6VA
Dissipated power: 0.7W
Supply voltage tolerance: +10%; -15%
Output
Number of contacts: 1 x switching
Rated current: 16A / AC1
Switching power: 4000VA / AC1, 384W
Peak current: 30A / <3s
Switching voltage: 250V AC1 / 24V DC
Min. switching power DC: 500mW
Mechanical service life: 3 x 107­
Electrical service life (AC1): 0.7 x 105
Controlling
RF command from transmitter: 868MHz
Manual control: button PROG (ON/OFF)
Range in open space: up to 200m
Further data
Operating temperature: -15 up to + 50oC
Working postion: any*
Mounting: In a network socket 230V AC
Protection: IP30
Overvoltage category: III.
Contamination degree: 2
Dimensions 60 x 120 x 80mm
Weight: 195g
Related Standards EN60669, EN300220, EN301489
