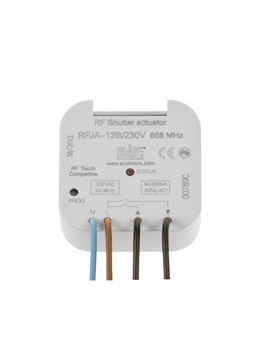

RFJA-12B/230V

Shutter Actuator / Receiver

tp83

• The shutter actuators have the function of controlling motorised
  shutters, blinds, garage doors etc.

• Controls 230V AC motors, which can be operated in both directions
  and have an in-built protective limit switch

• The time duration for completely opening or shutting the blind is retained

• The switching actuator can be controlled by up to 32 transmitters,
  like the RF Touch and push-button units

• The status of the device is signalled by an LED diode on the front panel

• The programming is performed by using the button 'PROG' which
  also acts as a manual override

• Can be mounted inside a 35mm deep back box or in to a
  non-metallic box behind the motor unit

Technical Details
Supply voltage: 230V AC
Apparent consumption: 7VA / cos j = 0.1
Loss consumption: 0.7 W
Consuption without load:  x
Consuption with load:  x
Tolerance of supply voltage: 9.85
Output
Number of contacts: 2 x NO/ 2PDT (AgSnO2)
Rated current: 8 A / AC1
Switched output: x
Switching power: 2000VA / AC1
Peak current: 10 A / <3 s
Switched output voltage**: 230V AC
Mechanical life: 1x107
Electrical life (AC1): 1x105
Control
Packet from transmitter: 868 MHz
Emergency control: PROG (STOP UP, STOP DOWN)
Range in open space: up to 100 m/ 328’
Other data
Operational temperature: 0 °C to +50 °C (32 °F to 122 °F)
Operational position: any
Mounting: loose on input wires
Protection degree: IP 30
Overvoltage category: III.
Pollution level: 2
Output wires: solid wires CY,   4 x 0.75 mm2
Output wire length: 90 mm (3.5˝)
Dimensions: 49 x 49 x 21 mm
Weight: 46 g (1.6 oz.)
Applying standards:  EN 60669, EN 300 220, EN 301 489 Directive RTTE, NV No.426/2000Sb (Directive 1999/ES)
