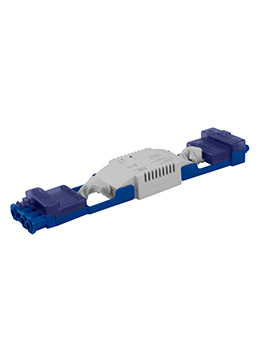

RFSA-61F

Switching Receiver 16A Max With Pre-Wired Flow

tp83

• The switching actuator is suitable for the control of devices such as,
  lights, heating, garage doors, socket-outlets etc.

• Compatible with all Click Flow connectors and distribution boxes within
  the range. Can be controlled by up to 32 transmitting devices.

• The switching actuator is suitable for the control of devices such as, lights,
  heating, garage doors, socket-outlets etc.

• 6 functions of operation are available: push-button, close, open,
  impulse relay, delayed off, delayed on

• The programming is performed by using the button 'PROG' which also
  acts as a manual override

• The status of the device is signalled by an LED on the front pannel

Technical Details
Supply voltage: 230V AC
Input: 7 VA / cos      = 0.1
Loss consumption: 0.7 W
Tolarance of supply voltage: +10 %; -15 %
Output
Number of contacts: 1x NO/ SPDT (AgSnO2)
Rated current: 16 A / AC1
Switched output: 4000 VA / AC1, 384 W / DC
Peak current: 30 A / <3 s
Switched voltage: 250 V AC1 / 24 V DC
Min. switched output DC: 500 mW
Mechanical life: 3x107
Electrical life (AC1): 0.7x105
Control
Packet from transmitter: 868 MHz
Emergency control: PROG (ON/OFF)
Range in open space: up to 200M
Other data
Operational temperature: -15 °C to +55 °C (5 °F to 131 °F)
Operational position: any
Mounting: loose on input wires or 35mm deep back box
Protection degree: IP 20
Overvoltage category: III.
Pollution level: 2
Output wires:  2x 0.75 mm,  2x 2.5 mm2
Output wire length: 90 mm (3.5˝)
Dimensions: 260.5 x 52.2 x 25.3mm
Weight: 150g
Applying standards: EN50491-1, EN5049102, EN50491-3 EN50491-1, EN5049102, EN50491-3 ETSI EN 301489-3, ETSI EN 300220-2 EN 60669-2-1
