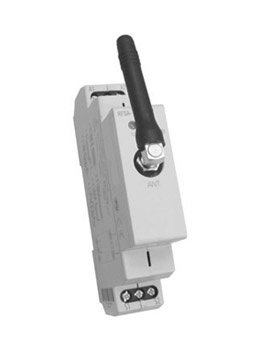

RFSA-61M

Switching Actuator / Receiver

tp83

• The switching actuator is suitable for the control of devices such as,
  lights, heating, garage doors, socket-outlets etc.

• RFSA-61M: 1-channel switching actuator in 1 MCB module width
  suitable for din rail mounting

• 6 functions of operation are available: push-button, close, open,
  impulse relay, delayed return, delayed start

• The programming is performed by using the button 'PROG' which
  also acts as a manual override

• The switching actuator can be controlled by up to 32 transmitters,
  like the RF Touch and push-button units

• The status of the device is signalled by an LED diode on the front panel

• Switching actuator is supplied with the front fitting antenna

Technical Details
Supply voltage: 230V AC
Apparent consumption: 2.7VA / cos      = 0.6
Loss consumption: 1.62W
Tolerance of supply voltage: +10%;  -25 %
Output
Number of contacts: 1 x changeover/ SPDT (AgSnO2)
Current rating: 16A / AC1
Switched output: 4000VA / AC1, 384W / DC
Peak current: 30 A / <3 s
Switched voltage: 250V AC1 / 24V DC
Min. switched output 500 mW
Mechanical life: 3 x 107
Electrical life (AC1): 0.7 x 105
Control
RF by transmitter command: 868 MHz
Emergency control: button PROG (ON/OFF)
Range in open space up to: up to 200 m/ 656.2 ’
Other data
Operating temperature: 0 °C to +50 °C (32 °F to 122 °F)
Operating position: any
Mounting: DIN rail EN 60715
Protection degree: IP20 from front panel
Overvoltage category: III.
Pollution level: 2
Terminal wire capacity:    max. 2.5 mm²/1.5 mm² with a ferrule
Dimensions: 90 x 17.6 x 64 mm (3.5˝ x 0.7˝ x 2.5˝)
Weight:   74 g (2.6 oz.)            137 g (4.8 oz.)
Applying standards: EN 60669, EN 300 220, EN 301 489 Directive RTTE, NV No.426/2000Sb(Directive 1999/ES)
