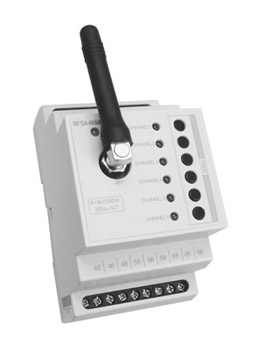

RFSA-66M

Switching Actuator / Receiver (6 Channel)

tp83

• The switching actuator is suitable for the control of devices such as,
  lights, heating, garage doors, socket-outlets etc.

• RFSA-66M: 6-channel switching actuator in 3 MCB module width
  suitable for din rail mounting

• 6 functions of operation are available on each channel: push-button,
  close, open, impulse relay, delayed return, delayed start

• The programming is performed by using the button 'PROG' on each
  channel which also acts as a manual override

• The switching actuator, each channel can be controlled by up to
  32 transmitters, like the RF Touch and push-button units

• The status of the device is signalled by an LED diode on the front panel

• The switching actuator is supplied with the front fitting antenna

Technical Details
Supply voltage: 110-230V AC
Apparent consumption: min. 2 VA / max. 5 VA
Loss consumption: min. 0.5 W / max. 2.5 W
Tolerance of supply voltage: +10%;  -25 %
Output
Number of contacts: 3 x changeover (AgSnO2) 3 x switching (AgSnO2)
Current rating: 8A / AC1
Switched output: 2000VA / AC1
Peak current: 10 A / <3 s
Switched voltage: 250V AC1
Min. switched output 500 mW
Mechanical life: 1 x 107
Electrical life (AC1): 1 x 105
Control
RF by transmitter command: 868 MHz
Emergency control: button PROG (ON/OFF)
Range in open space up to: up to 200M
Other data
Operating temperature: 0 °C to +50 °C (32 °F to 122 °F)
Operating position: any
Mounting: DIN rail EN 60715
Protection degree: IP20 from front panel
Overvoltage category: III
Pollution level: 2
Terminal wire capacity:    max. 2.5 mm²/1.5 mm² with a ferrule
Dimensions: 90 x 52 x 65mm
Weight: 310g
Applying standards: EN 60669, EN 300 220, EN 301 489  Directive RTTE, NV No.426/2000Sb(Directive 1999/EC)
