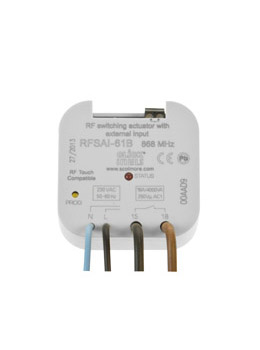

RFSAI-61B

Switching Actuator / Receiver

tp83

• The 16A single channel switching actuator is suitable for the control of
  devices such as, lights, heating, garage doors, socket-outlets etc.

• 3V DC external input for use with switch drop cables and a momentary
  switch. The input has to be programmed as though wireless, selecting
  one of the six functions available.

• 6 functions of operation are available: push-button, close, open,
  impulse relay, delayed return, delayed start

• The programming is performed by using the button 'PROG' which
  also acts as a manual override

• The switching actuator can be controlled by up to 32 transmitters,
  like the RF Touch and push-button units

• The status of the device is signalled by the LED on the front panel

• Can be mounted inside a 35mm deep back box or behind light fittings

Technical Details
Supply voltage: 230V AC
Input: 7 VA / cos      = 0.1
Loss consumption: 0.7 W
Tolarance of supply voltage: +10 %; -15 %
Output
Number of contacts: 1 x Switching (AgSnO2)
Rated current: 16 A / AC1
Switched output: 4000 VA / AC1, 384 W / DC
Peak current: 30 A / <3 s
Switched voltage: 250 V AC1 / 24 V DC
Min. switched output DC: 500 mW
Mechanical life: 3 x 107
Electrical life (AC1): 0.7 x 105
Control
Packet from transmitter: 868 MHz
Emergency control: PROG (ON/OFF)
Range in open space: up to 200 m/ 656.2 ’
Other data
Voltage - switch contact 3V
Operational temperature: -15 °C to +55 °C (5 °F to 131 °F)
Operational position: any
Mounting: loose on input wires or 35mm deep back box
Protection degree: IP 30
Overvoltage category: III.
Pollution level: 2
Output wires:  2 x 0.75mm2,  2 x  2.5mm2
Output wire length: 90 mm (3.5˝)
Dimensions: 49 x 49 x 21 mm (1.9˝x 1.9˝x 0.8˝)
Weight: 46 g (1.6 oz.)
Applying standards: EN 60669, EN 300 220, EN 301 489 Directive RTTE, NV No.426/2000Sb(Directive 1999/ES)
