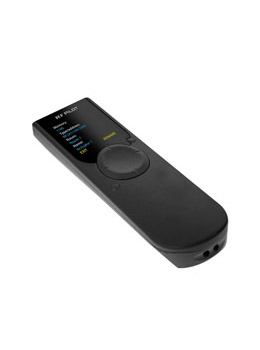

RF Pilot

Remote RF Controller with Display

tp83



• Provides control and feedback about status of appliances and devices.

• Can be programmed for up to 40 RF Control actuators.

• Measures and displays temperature in the surrounding area.

• "Scene" mode enables user to control up to 10 receivers with a single press.

• Can include most frequently used device in to the "Favourite" menu and
  control them immediately after the activation of the RF Pilot display.

• Has a range of up to 200m

Technical Details
Type: Colour OLED
Resolution: 128 / 128 pixels
Side ratio: 01:01
Visible surface: 26 x 26mm
Backlighting: self-illuminating text
Diagonal: 1.5"
Control: direction button, control buttons
Power supply 2 x 1.5V AAA batteries / R03
Battery life: approx. 3 years
Range in free space: upto 200m
Frequency: 868MHZ
Other data
Operating temperature: 00C to +550C
Storage temperature: -200C to +700C
Protection: IP20
Dimensions: 130 x 41 x 18mm
Weight: 61g
Related Standards: EN60730-1
